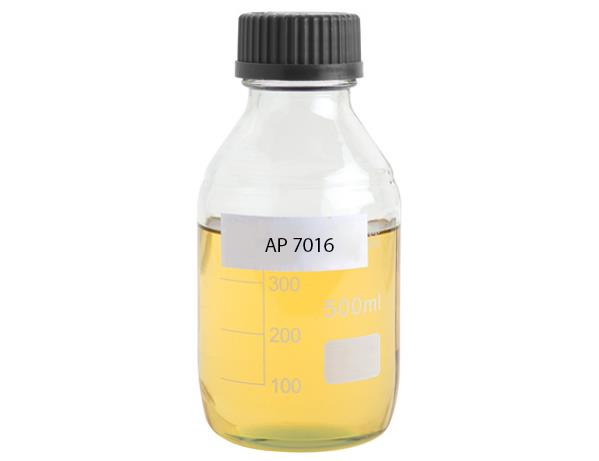

Unsaturated Polyester Resin AP7016

بازدید: 3489


AP7016 is a modified isophthalic acid based resin designed to provide exceptional resistance to solvents and chemicals. This resin offers a good retention of mechanical properties at elevated temperatures. This resin is dissolved in styrene.

Applications and Fabrication Techniques

. Recommended for most commercial FRP fabrication processes such as: hand layup, spray-up, pultrusion, filament winding and resin transfer molding, SMC & BMC

. Suitable for applications where outstanding mechanical properties and excellent

. To make parts that need chemical and heat resistance

. For manufacturing pipes and tanks


مشخصه میزان واحد
Colour <2 gardner
Density, 25°C/77°F 1.08 ± 0.04 g/cm3
Dynamic Viscosity, 25°C/77°F 300-600 cP
Styrene Content 35-41 %
Acid Value Max 20 mg KOH/g
Shelf Life, Dark, 25°C/77°F 6 months
  • Typical properties are not to be construed as specifications.
عنوان وزن
Resin Temperature 25°C/77°F
Catalyst 1 (phr)(2)
Cobalt octoate1% 1 (phr)
Gel Time (min.) 14-20 (3)
مشخصه میزان واحد استاندارد روش آزمون
Tensile Strength (MPa) Min. 75.0 ASTM D 638
Tensile Elongation (%) Min. 3.5 ASTM D 638
Tensile Modulus (GPa) Min. 3.0 ASTM D 638
Flexural Strength (MPa) Min. 120.0 ASTM D 790
Flexural Modulus (GPa) Min. 3.5 ASTM D 790
Heat Distortion Temperature (6) °C Min. 88.0 ASTM D 648 /ISO 75
Barcol Hardness (7) Min. 40.0 ASTM D 2583

Typical Properties (4) of Post cured (5) Resin Clear Casting:

Typical property values only, not to be construed as specifications.

Cure schedule: 24 hours at room temperature; 3 hours at 85°C (185°F)

Maximum stress: 1.8 MPa.

Test specimen must be prepared by mold.

Handling and Storage Consideration:

This resin should be stored indoors in the original, unopened and undamaged packaging, in a dry place at temperatures between 5°C and 30°C. The shelf life of styrene containing unsaturated polyester resins will be significantly reduced when exposed to light and/or higher temperatures.

Safety:

This resin contains ingredients which could be harmful if mishandled. Contact with skin and eyes should be avoided and necessary protective equipment and clothing should be worn.
